Global Auto Equipment

Inflator

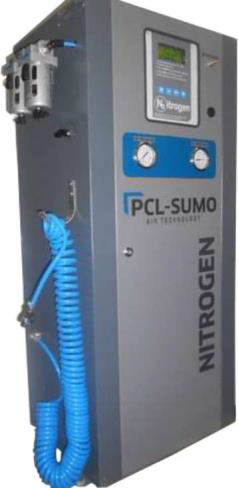

N2 GENERATOR INFLATOR

Description

The N2 Generator provides a robust, cost effective and Mobile design capable of delivering high levels of N2 purity.

Key Benefits

  • Specially designed high-volume CMS Towers for continuous supply of pure N2 at higher flow rate.
  • In-built inflation/deflation for up to FOUR tyres at once.
  • Low lifetime costs – with high-grade filtration including activated carbon and high-performance components.
  • Air/N2 selector allows the same unit to be used for Air or N2 inflation for up to four tyres with just the click of a lever.

Specifications

N2 Generation capacity3000 litres/hr
N2 Tank capacity50 litres
Cabinet Size500x350x1200 mm
Weight110 kg
N2 purity95%-99.5%
Inlet air pressureAbove 150 psi
N2 outlet air pressure120 psi
Accuracy± 5% FSR
Out let hose LengthPU Coiled hose (10m)
Stabilized power supply230Vac/50Hz

ACCURA D60TS

Key Benefits

  • Consistent cost-effective supply of high levels of safe air inflation services.
  • Low lifetime costs – ensures long product life with a robust design and proven electronics.
  • Low and simple maintenance for easy usability.
  • Simplicity in operation.
  • Guaranteed accuracy with individual testing.

Specifications

Dimensions
Height255mm (10.04”)
Width220mm (8.66”)
Depth100mm (3.94”)
Weight3.2kg (7.06lbs)
Environmental Specifications
Temperature Range-20°C to 70°C
Operating Storage30°C to 80°C
Humidity RangeUp to 95% RH (non-condensing)
Electrical Interface
Voltage230 Vac
Power15 VA
Inflation Speed

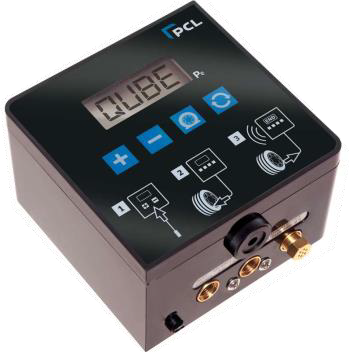

QUBE TYRE INFLATOR

Description

PCL has cost-effective and accurate tyre inflation boxed off with this space-saving, entry- level unit, the ACCURA QUBE Tyre Inflator.

Key Benefits

  • Consistent cost-effective provision of high levels of safe air inflation services
  • Low life-time costs – long product life with robust design and proven electronics
  • Plug and play – tyre inflator with 3 pre-selectable application modes
  • Fits all applications – general, tyre shop, and N2

Specifications

Dimensions150 x 150 x 92 mm
Weight2.3 kg
Operating Temperature-20 to 70°C
Max. Voltage230 Vac
Accuracy±0.5% of full scale reading
Flow Rate0.1 bar / 1 psi / 5 kPa, 2500 L/min @ 10 bar supply
Max. Inlet Pressure15 bar
Max. Inflation Pressure10 bar

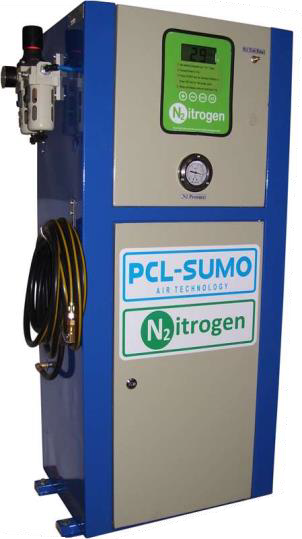

N2 GENERATOR INFLATOR TRUCK

Description

  • The DIR (DIRECT) is a single-hose machine with direct inflation
  • Specially designed high-volume CMS Towers for continuous supply of pure N2 at a higher flow rate
  • N2 purity checkpoint provided
  • Accumulated digital hour meter built into the software
  • Guaranteed accuracy and robustness with a ceramic pressure sensor
  • Option to make the unit mobile is available
  • Heavy-duty Euro design Clip-on Connector for firm grip on the tyre valve
  • Spacious powder-coated cabinet for ease of maintenance

Specifications

N2 Generation capacity3000 litres/hr
N2 Tank capacity50 litres
Cabinet Size500x350x1200 mm
Weight110 kg
N2 purity95%-99.5%
Inlet air pressureAbove 150 psi
N2 outlet air pressure120 psi
Accuracy± 5% FSR
Out let hose LengthPU Coiled hose (10m)
Stabilized power supply230Vac/50Hz
