Body Shop Pneumatic Tools

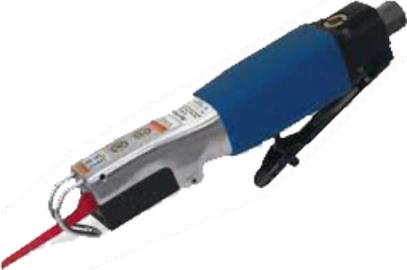

AT 192 HIGH SPEED AIR SAW
Description
- Adjustable blade guard for controlled cutting depth.
- Teflon®-coated piston enhances smooth operation and durability.
- Comfort grip handle with a safety-lever throttle.
- Includes saw and three blades (18, 24, and 32 TPI).
- Suitable for straight or scroll cuts in metal and plastic.
- Ergonomic housing for better grip and control.
- Optional 4-inch long blades available.
Specifications
| Free Speed | 11,000 rpm |
| Piston Stroke | 3/8 inches |
| Length | 9.3 inches |
| Overall Length | 9.25 inches |
| Weight | 0.80 kg |
| Air Consumption | 1.0 CFM |
| Blade Strokes per Minute | 11,000 |
| Sound Pressure Level | 82.0 dB |
| Sound Power Level | 94.0 dB |
| Sound Level (dBA) Pressure | 94 dB |
| Vibration Level | 10.1 m/s² |
| Air Inlet Thread Size | 1/4"-18 NPT |
| Recommended Hose Size | 10 mm |

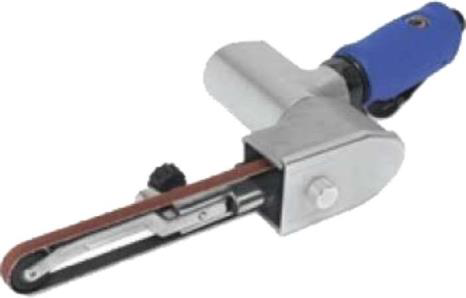

AT 615 BELT SANDER
Description
- Grinding head pivots 360º for increased flexibility
- Simple belt tracking adjustment knob to adjust belt slack
- Powerful 0.5 hp for long lasting performance
- Belt guard detaches for quick abrasive changes
- Ergonomic 7º off set handle and lightweight design minimizes operator fatigue
Specifications
| Rated Power | 0.3 kW |
| Free Speed | 20,000 rpm |
| Air Consumption (Free Speed) | 119 l/min |
| Air Inlet Thread Size | 1/4 Inches |
| Recommended Hose Size | 3/8 Inches |
| Vibration Levels | 1.36 m/s² |
| Sound Level (dBA) Pressure | 95 dB |
| Length | 359 mm |
| Weight | 1.20 kg |

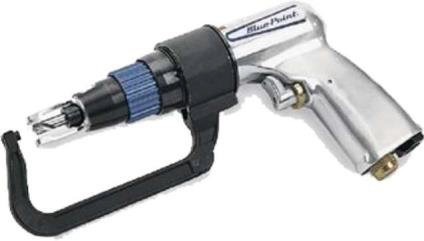

AT 184 SPOT WELD DRILL
Description
- Twist depth control collar allows precise setting of drilling depth up to 1/4″
- Two speed trigger for low or high speeds
- Pistol grip design
- Includes one 5/16″ (8 mm) drill bit and removable clamp arm
Specifications
| Free Speed | 1,800 rpm |
| Air Consumption (Free Speed) | 238 l/min |
| Air Inlet Thread Size | 1/4 Inches |
| Recommended Hose Size | 3/8 Inches |
| Vibration Levels | < 1.0 m/s² |
| Sound Level (dBA) Pressure | 84 dB |
| Length | 201 mm |
| Weight | 1.40 kg |
AT 803BK AIR DRILL
Description
Blue Point 3/8 inch Reversible Air Drill is a tool used to drill on different materials such as wall, wood, metal, iron, etc. These Pneumatic Tools have a built-in handle at the bottom for chuck key holder. Manufactured with supreme-quality material, these Drills have one-hand forward and reverse operation with specific features. The Blue Point air drill has the unique feature of bottom handle diffused exhaust.
Specifications
| Free Speed | 2,200 rpm |
| Air Inlet Thread Size | 1/4 Inches |
| Recommended Hose Size | 3/8 Inches |
| Weight | 1.40 kg |
| Pulling Force | 4200 x 1110mm |
| Length | 5320 x 2230mm |
| Width | 480 - 1480mm |
| Max Height | Bench 3.5° | Driving ramps 12° Yes |
| Min Height Max. Length with Draw Aligner | Yes |
| Max. Width with Draw Aligner | Yes |
| Aligner Weight with Lift | 1000mm (39.3 in) Yes |
| Weight with Lift Work Area Size | 3140mm (123.6 in) (Draw Aligner on both sides) |
| Mobile Capacity | Yes, Optional |
| In-Ground Capacity | Yes |
| Milled Surface for Measuring | Yes |
| Lift Capacity (Max Vehicle Weight) 360° Pulling | 2800kg (6,160 lbs) |
| Capacity | Yes |
| Power | 3 Ph, 50 Hz 200, 230, 400 V | 1 Ph, 60 Hz, 110, 220 |

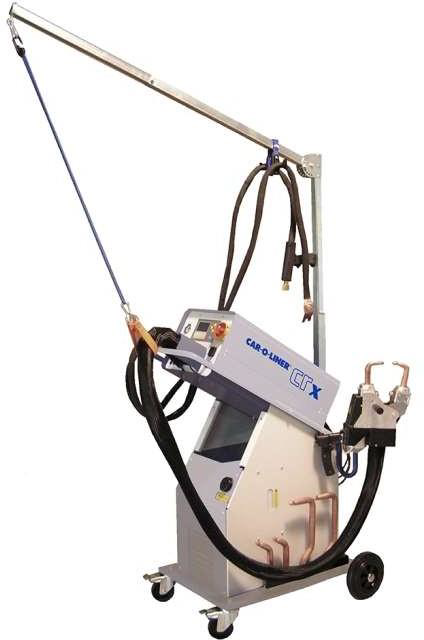

SPOT WELDER
Description
Car-O-Liner continues its quest to create the very best products for vehicle collision repair. The resistance spot welder, the new generation welding machine, provides quality spot welds with all the new high-strength steels using cutting-edge inverter technology. A wide range of accessories and sophisticated software with semi-automatic control features guarantee perfect welding results.
Specification
| Max Voltage | 3 × 400V - 5% +10%, 50 Hz - 50 Hz |
| Max Power | 75 kVA |
| Fuse (Delayed Action) | 16-32 A |
| Protection Type | Ip21 |
| Insulation Class | F |
| Compressed Air Supply | 5-10 bar (72-145 psi) |
MIG WELDER
Description
The CM161 is a handy, portable & versatile welding machine. It is designed as a compact multi-process machine, primarily for MIG welding but also for the MMA welding process; a modern mono-phase 230V inverter machine suitable for workshop use and site welding operations.
Specification
| Input Voltage | 230V/400V 50-60 Hz, 3-ph |
| Fuse | Hz 3-ph |
| Current Range | 10A |
| Open Circuit Voltage | 20-180A |
| Voltage Steps | 14-30V |
| Step | Less |
| Wire Dimensions | 0.6-0.8 mm |
| Wire Reel Dimension | 5-15 kg |
| Wire Reel Speed | 2-12 m/min |
| Dimensions | 72 × 38 × 70 cm |
| Weight | 57 kg |

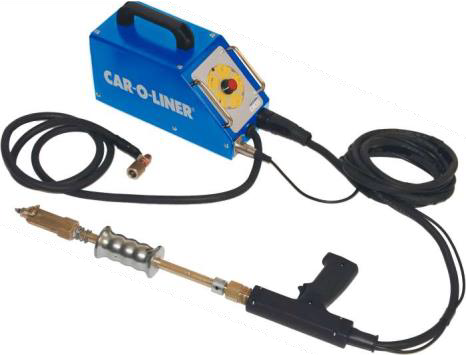

SPOT DENT PULLER
Description
The CR35 is a sophisticated micro-process controlled spotter for welding and traction of all studs, nails, washers, rivets, and bolts.
Specification
| Input Voltage | 230V, 50-60Hz, 1-ph |
| Rated Power at 50% | 2 kVA |
| Max Power | 16 kVA |
| Fuse Rating (Slow blow) | 16A |
| Secondary No-load Voltage | 7V |
| Secondary Short Circuit Current | 2.8 kA |
| Duty Cycle | 5% |
| Dimensions | 13014 kg |

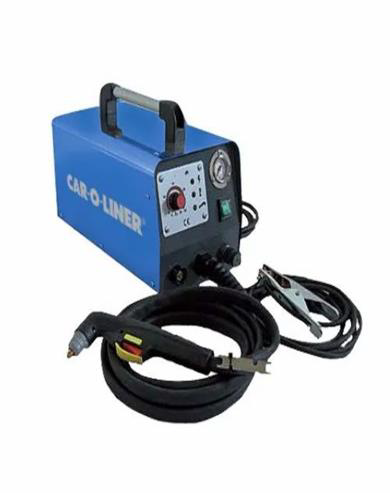

PLASMA CUTTER
Description
Car-O-Liner PC 30 is the perfect cutting tool for all high-strength steels. Excellent cutting performance on thin sheet metal and high wear resistance for longer tool life.
Specification
| Input Voltage | 230V, 50-60 Hz, 1 ph |
| Duty Cycle 20% | 25A |
| Duty Cycle 100% | 10A |
| Fuse Rating (Slow blow) | >16A |
| Current/Voltage Range | 5A/82V |
| Performance (Steel and Aluminum Cutting/Separation) | 4mm/5mm |
| Protection Class | Ip22 |
| Air Pressure | 4 bar (58 PSI) |
| Weight | 9 kg (20 lbs) |
