Body Shop Equipments

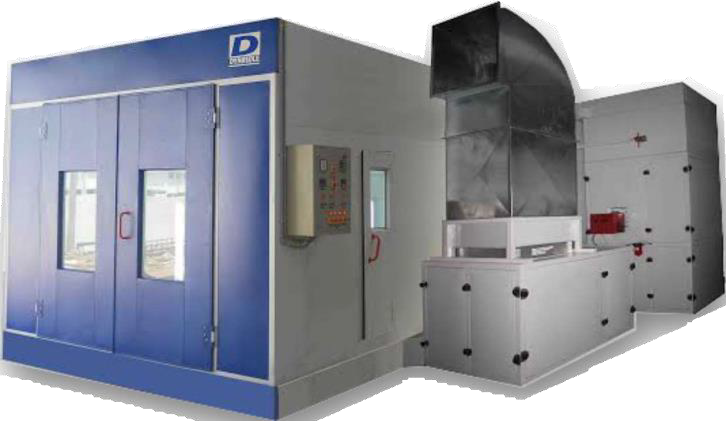

DYNASOLE PAINT BOOTH
Description

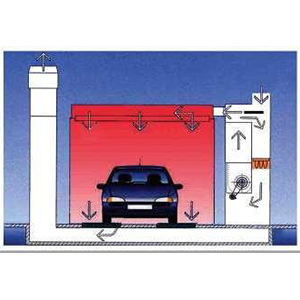

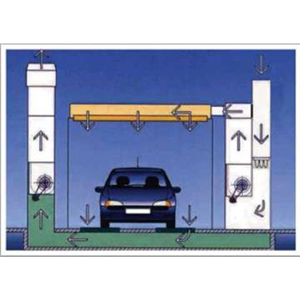

- Dynasole spray booths are positive pressurized and work on vertical down draft principle.
- Downward air flow draws over spray away from th vehicle and breathing zone of operator, leading to smooth finish, healthier and more comfortable working environment .

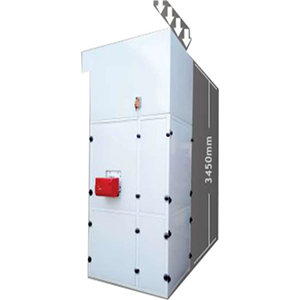

- How dynasole Spray Booths work: Hot air generator (Blower cum Heat Exchanger unit) is made of two compartments to breath fresh air from top only. Its large pre-filter area, enhances the life of expensive ceiling filters.
- Every part is accessible from all sides and designed for easy serviceability by tilting four stoppers, we can see the motor, blower and the condition of the pre filter
CRS
Description

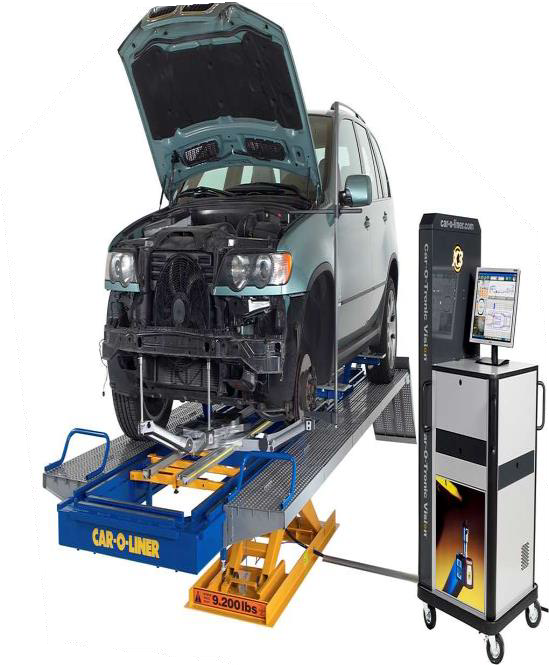

- Car-O-Liner’s Mark6 bench is designed around the idea that the more flexible a collision repair system is, the more productive it will be. With a series of configurations to choose from, Mark6 offers flexibility in getting the combination of equipment best suited to your business.
- Mark6 is a mobile bench system with the added convenience of drive-on mounting. Simply roll/drive the car over the lifting platform. Moreover, the vehicle may be quickly raised to the most comfortable height for each repair operation. These ergonomic features increase efficiency and offer a productive working environment for the technicians.
Specifications
| Pulling Force | 4200 x 1110mm |
| Length | 5320 x 2230mm |
| Width | 480 - 1480mm |
| Max Height | Bench 3.5° | Driving ramps 12° Yes |
| Min Height Max. Length with Draw Aligner | Yes |
| Max. Width with Draw Aligner | Yes |
| Aligner Weight with Lift | 1000mm (39.3 in) Yes |
| Weight with Lift Work Area Size | 3140mm (123.6 in) (Draw Aligner on both sides) |
| Mobile Capacity | Yes, Optional |
| In-Ground Capacity | Yes |
| Milled Surface for Measuring | Yes |
| Lift Capacity (Max Vehicle Weight) 360° Pulling | 2800kg (6,160 lbs) |
| Capacity | Yes |
| Power | 3 Ph, 50 Hz 200, 230, 400 V | 1 Ph, 60 Hz, 110, 220 |
SPOT WELDER
Description
- Car-O-Liner continues its quest to create the very best products for vehicle collision repair. The resistance spot welder, the new generation welding machine, provides quality spot welds with all the new high-strength steels using cutting-edge inverter technology.
- A wide range of accessories and sophisticated software with semi-automatic control features guarantee perfect welding results.
Specifications
| Max Voltage | 3 × 400V - 5% +10%, 50 Hz - 50 Hz |
| Max Power | 75 kVA |
| Fuse (Delayed Action) | 16-32 A |
| Protection Type | Ip21 |
| Insulation Class | F |
| Compressed Air Supply | 5-10 bar (72-145 psi) |
MIG WELDER
Description
The CM250 is a handy, portable & versatile welding machine. It is designed as a compact multi-process machine, primarily for MIG welding but also for the MMA welding process; a modern mono-phase 230V inverter machine suitable for workshop use and site welding operations.
Specifications
| Current Range | 20 – 250 A |
| Voltage Adjustment Steps | 10 |
| Duty Cycle, 100% | 140 A |
| Duty Cycle, 60% | 165 A |
| Duty Cycle, 35% | 200 A |
| Open Circuit Voltage | 15 – 34 V |
| Main Voltage | 3 Phase, 400 V |
Specifications
| Fuse Rating | 10 A |
| Mains Current (Effective) | 5.9 A |
| Mains Current (Max) | 10.0 A |
| Power Consumption | 4.1 kVA |
| Open Circuit Consumption | < 10 W |
| Efficiency | 0.85 |
| Protection Class | IP21 |
| Wire Diameter Supported | 0.6 – 1.2 mm |
| Wire Feed Speed | 2 – 15 m/min |
| Dimensions (L × W × H) | 77 × 37 × 62 cm |
| Weight | 66 kg |
SPOT DENT PULLER
Description
The CR35 is a sophisticated micro-process controlled spotter for welding and traction of all studs, nails, washers, rivets, and bolts.
Specifications
| Input Voltage | 230V, 50-60Hz, 1-ph |
| Rated Power at 50% | 2 kVA |
| Max Power | 16 kVA |
| Fuse Rating (Slow blow) | 16A |
| Secondary No-load Voltage | 7V |
| Secondary Short Circuit Current | 2.8 kA |
| Duty Cycle | 5% |
| Dimensions | 13014 kg |

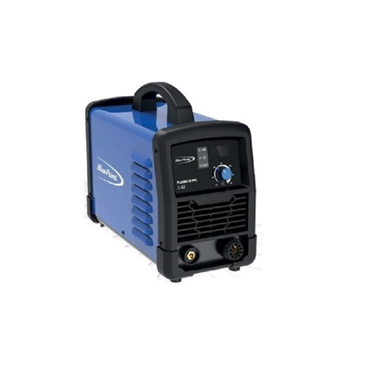

PLASMA CUTTER
Description
Car-O-Liner PC 30 is the perfect cutting tool for all high-strength steels. Excellent cutting performance on thin sheet metal and high wear resistance for longer tool life.
Specifications
| Input Voltage | 230V, 50-60 Hz, 1 ph |
| Duty Cycle 20% | 25A |
| Duty Cycle 100% | 10A |
| Fuse Rating (Slow blow) | >16A |
| Current/Voltage Range | 5A/82V |
| Performance (Steel and Aluminum Cutting/Separation) | 4mm/5mm |
| Protection Class | Ip22 |
| Air Pressure | 4 bar (58 PSI) |
| Weight | 9 kg (20 lbs) |
DENT PULLER
Description
The CR35 Spot-Welder Puller is designed for repairing dents on vehicle metal bodies with precision and ease.
Specifications
| Input Voltage | 230 V, 50–60 Hz, 1-phase |
| Rated Power at 50% | 2 kVA |
| Maximum Power | 16 kVA |
| Fuse Rating (Slow Blow) | 16 A |
| Secondary No-load Voltage | 7 V |
| Secondary Short Circuit Current | 2.8 kA |
| Duty Cycle | 5% |
| Dimensions (W × L × H) | 130 × 12 × 150 mm (5" × 0" × 6") |
| Weight | 14 kg (31 lbs) |
PLASMA CUTTER
Description
- Automation Grade Semi Automatic
- Plasma Cutting Machine using electric arc and compressed air only
- High Performance with cutting thickness of up to 25mm
- Suitable for automotive market – 3mm
- Suitable for Construction market – 20mm
- Suitable for Fabrication market – 5mm
- Cutting steels and alloys
- No Special gas required
- Easy Setup
Specifications
| Power Source | 50/60Hz |
| Voltage | 120-240 VOLT |
| Max Cutting Length | 25 MM |
| Current Ampere | 24A |
| Output Current | 45A |
| Dimension Lx W X H Mm | 430*175*293 |
MIG Welding Machine
Description
- The Machine has many benefits over traditional transformer MIG welders, including infinite power control and a compact wire feed mechanism to provide very smooth wire feed and weld characteristic
- Latest IGBT inverter technology
- MIG/MAG with gas-less wire function
- Industrial application
- High Strength metal case construction
- Euro Style MIG Torch connection
- IP21S rating for environmental / saftey protection
- Step Less Voltage and wire feed control
- Light weight and portable
wire inch and burn back functions
Specifications
| Welding Current Range | 160A |
| Phase | Single Phase |
| Working Voltage | 230V |
MAD - Brake disc aligning DA8700
Description
The DA8700 is a precision tool. It is cast in one piece. To ensure long and accurate life, the DA8700 is heattreated after processing. The tool is then treated with nitrotec to prevent the formation of rust and given a good look with a special wax treatment.
The unique guides for the cutter holders and the very short, solid clamps to the car enable the definite elimination of the vibration problems.
| Free Speed | 2,200 rpm |
| Air Inlet Thread Size | 1/4 Inches |
| Recommended Hose Size | 3/8 Inches |
| Weight | 1.40 kg |
