AC Recovery Machine

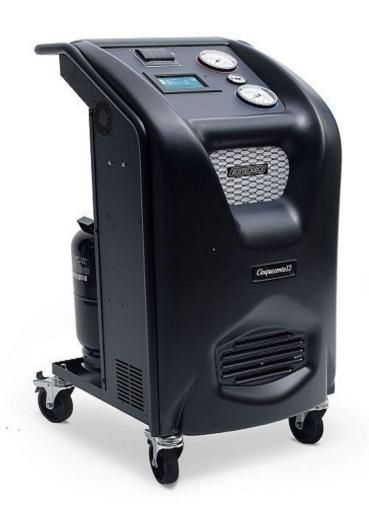

CINQUECENTO 12

Cinquecento12 is the model designed for R134a or HFO refrigerants.
The solid metal structure, the choice of known and tested components, and the implementation of new technological standards make this station the most performing entry-level on the global market.
Configuration of the refrigerant during activation with the corresponding R134a or HFO kit.
Energy-saving with 12-volt solenoid valve technology.

Fully automatic A/C service station “full optional” for recovery, recycling, and recharging.
Two different circuits for each refrigerant.
Intuitive and user-friendly operation of the machine via a 7” colour touchscreen.
Clean handling of compressor oil of various standards and types.
The patented hybrid function guarantees the efficient and complete cleaning of service hoses, service couplings, and internal connections.

Type of refrigerant	R134a & R1234yf
Service procedure	Fully automatic or manual
Voltage	220-240V 50/60 Hz
Scale resolution	10 gr
Oil scale resolution	5 gr
Working temperature range	11°/49°C
Filter system	2 filters for humidity
Vacuum pump	100 litre/min capacity, 0.1 mbar vacuum level
Compressor	Hermetically sealed, 2×12cc, high pressure
Recovery speed	300 g/min in liquid phase
Refrigerant tank	2×12 litres, refillable
Hoses	2 pairs, each 3 meters
Dimensions/Weight	67×62×107 cm, 122 kg
Dimensions/Weight (Packaging)	91×72×126 cm, 132 kg
Thermal printer	Standard equipment
Pressure gauges	Class 1
Display	Colour graphic, touch screen
Bottle temperature sensor	Yes
Bottle heater	Integrated Automatic
